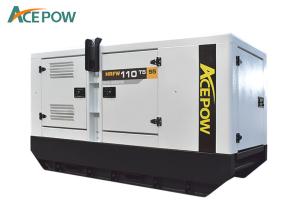

One Year Warranty Canopy Diesel Generator 50kva 40kw Ricardo Engine N4105ds 3 Phase 1 Phase Generator Silent
Product Description
Brand: Ricardo
40-50C°Cabinet temperature Water Tank Heat Sink, Belt
Driving Cooling Fan with Security Shield
24V Battery Charging Generator
Alternator Brand: ACEPOW
Single Bearing Alternator
Stainless galvanized zinc plates with strong corrosion resistance
Base fuel tank for at least 8 hours running
Equipped with an industrial muffler
Engine oil pump
Complete protection functions and safety lables
Water jacket preheater, oil heater and double air cleaner, etc.
OUR GENERATOR ADVANTAGE :
Steady and reliable Performance, Convenient Service
Low consumption, Perfect Maneuverability
Easy Installation and Maintenance
Wide Application
| Generating Set Model | Prime | Standby |
| APW-50 | 50kVA/40kW | 55kVA/44kW |
| Generating Set Model | Length (L) mm | Width (W) mm | Height (H) mm | Net
kg (lb) | Gross
kg (lb) |
| APW-50 | 1750 | 800 | 1200 | 750 | 800 |
| APWS-50 | 2250 | 930 | 1200 | 930 | 980 |
| Dry = With Lube Oil Wet = With Lube Oil and Coolant |
| Ratings and Performance Data |
| Engine Brand | Ricardo |
| Engine Model | N4105DS-46 |
| Alternator Brand | Stamford |
| Alternator Model | UC224D / S1L2-R1 |
| Control System | Smartgen HGM6120N |
| Circuit Breaker Type | / |
| Frequency / Phase | 50Hz/ Three phase |
| Engine Speed ( RPM) | 1500Rpm |
| Fuel Tank Capacity (L) | 80 |
| Fuel Consumption rate (g/kW.h) | 230 |
| Model Type | Open / Silent |
| Noise Level@7m (dBA) | 70 |
| Generator set Manufacture | Acepow |
| Oil Consummption (L/h) | 1.07 |
| Engine Technical Data |
| Engine Model | N4105DS-46 |
| Engine Brand | Ricardo |
| Number of Cylinders | 4 |
| Cylinders Arrangerment | Vertical in-line |
| Bore/Stroke (mm) | 105/120 |
| Speed (RPM) | 1500 |
| Displacement (L) | 4.15 |
| Compression Ratio | 17:1 |
| Aspiration | naturally |
| Starting method | Electric motor start |
| Lubrication System |
| Maximum Oil Temp.(°C) | 105 |
| Oil capacity(L) | 13 |
| Lubricating method | Pressure lubrication |
FAQ:
1. What's your power range of diesel generators?
We can offer diesel generators range from 10kva~2000kva.
2. What's your delivery time?
15-30 days after deposit received.
3. What's your payment?
1). 30% T/T deposit advance, the balance paid against the copy of BL.
2). 100% Irrevocable LC at sight.
4. What's your warranty?
One year or 1500 hours which comes first.
5. What's your MOQ?
We accept the MOQ is 1 set.
6. What’s the frequency and voltage of diesel generators?
Voltage Available: 50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client’s request
Prime Power: comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power range. One hour 10% over load in every 12 running hours is allowed;
Standby Power: standby power is the limit value of maximum output for emergency use. It is off-oil power, overloading is prohibited
