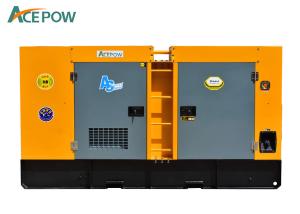

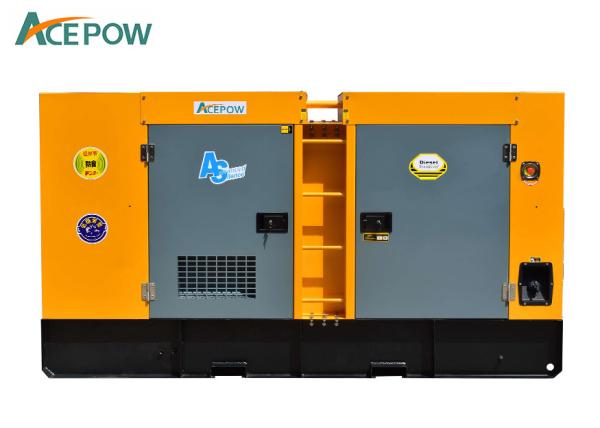

Generators Big Size Diesel Powered Generator 113kva 90kw 6bg1-Zl1 Isuzu Electric Start Diesel Generator Plant
Product descriptions :
Engine Brand: ISUZU
Number of Cylinders: 6
Cylinders Arrangerment: Vertical in-line
Aspiration: Turbo & Inter cooler
Starting method: Electric motor start
Type : 6-cylinder,In-line,Water cooled,Four-stroke,Turbo & Inter cooler
Alternator: ACEPOW Brushless alternator
Conttrol System: Separaately Excited BY P.M.G.
Insulatiion System : Class H
Protection: IP23
Rated Power Factor: 0.8
Stator Winding: Double Layer Concentric
Winding Pitch: Two Thirds
Winding Leads : 12
Stator Wdg.Resistance: 0.044 Ohms Per Phase At 22°C Series Star Connected
Rotor Wdg.Resistance: 1.26 Ohms at 22°C
Exciter Stator Resiistance: 20 Ohms at 22°C
Exciter Rotorr Resisttance: 0.091 Ohms Per Phase At 22°C
R.F.I. Suppression: BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others
Base Frame
* Base frame including position for forklift and crane
* Integral fuel tank
* Daily fuel tank continuously supply for 8-24 hours
* Fuel tank easy to maintain and clean
* Anti-vibration pads are flexed between engine and alternator.
| Output Ratings |
| Generating Set Model | Prime | Standby |
| API-113 | 113KVA/90KW | 124KVA/99KW |
| Engine Technical Data |
| Engine Model | 6BG1-ZL1 | Lubrication System | | |
| Engine Brand | ISUZU | Maximum Oil Temp.(°C) | / |
| Prime power (kw) | 105 | Oil capacity(L) | 11 |
| Standby Power (kw) | 110 | Lubricating system | Pressure splashed |
| Prime power (g/kw.h) | 223 | Fuel System |
| Number of Cylinders | 6 | Fuel Tank | Steel |
| Cylinders Arrangerment | Vertical in-line | Fuel Tank Capacity (L) | |
| Bore/Stroke (mm) | 105*125 | Fuel tank type | Bottom |
| Speed (RPM) | 1500 | Recommended Fuel Type | 0# or ASTM2 |
| Displacement (L) | 5.885 | Injection System | Direct injection |
| Compression Ratio | 17.5 | Maximum Oil Temp.(°C) | / |
| Aspiration | Turbo & Inter cooler | Oil capacity(L) | 11 |
| Starting method | Electric motor start | Lubricating system | Pressure splashed |
| Fuel Consumption: |
| API-113 | 100% Load | 75% Load | 50% Load | 25% Load | / | / |
| H/L | 28.10 | 21.07 | 14.05 | 7.03 | / | / |
