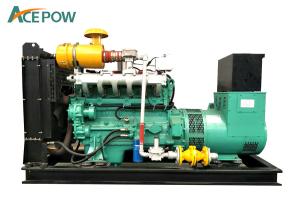

94KVA 75KW Diesel Backup Generator , Electric Start Diesel Generator

Product Categories
FUJIAN ACEPOW EQUIPMENT CO.,LTD
Contact Now

94KVA 75KW Diesel Backup Generator , Electric Start Diesel Generator

  • 1
  • 2

Brand Name : ACEPOW

Model Number : APS-94

Certification : CE,ISO, SASO

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiate

Payment Terms : L/C, D/P, T/T

Supply Ability : 10000SETS/YEAR

Delivery Time : 25 DAYS

Packaging Details : NUDE PACKING,PLYWOOD CASE

Output type : AC Three Phase/ single phase

Control panel : Deepsea / ComAp / Harsen / Smartgen 6110

Type : standby diesel generator

Rated power : 75KW/94KVA

Alternator : Stamford/Leroy Somer/Marathon

Generator type : Silence Generator Set,Silent(super Silent)or Open Gene

Engine : shangchai

Color : as our denyo color or customized

Options : ATS,tank capacity,Customer's Logo,color,frequency

Contact Now

50hz 60hz Electric Start Standby Diesel Generator 94kva 75kw Shangchai Volvo Diesel Generator Set

Standard configuration :

Engine: Shangchai

Alternator: Stamford / Leroy Somer/Marathon

Cooling Fan with fan guard and front guard

Alternator: Single bearing, IP23, H class

24V Charger

Shock Absorber

Dry Air Filter. Dual Fuel Filter. Engine Oil Filter Coolant Filter.

MCCB Circuit Breaker

Standard Control Panel; ATS for optional

Start Battery with connecting cable

Storage Battery and battery line, Exhaust pipe,Corrugated pipe for anti-vibration, Cone Tube,Flange, Muffler

Soundproof Enclosure/Canopy for optional

Output Ratings
Generating Set Model Prime Standby
APS-94 94KVA/75KW 97KVA/77KW
Generating Set Model Length (L) mm Width (W) mm Height (H) mm Net
kg (lb)		 Gross
kg (lb)
APS-94 2200 900 1300 1280 1330
APSS-94 2920 1080 1670 1700 1750
Dry = With Lube Oil Wet = With Lube Oil and Coolant

Ratings and Performance Data
Engine Brand SDEC
Engine Model SC4H115D2
Alternator Brand Stamford
Alternator Model UC274C/UCI274C
Control System Smartgen HGM6120N
Circuit Breaker Type /
Frequency / Phase 50Hz/ Three phase
Engine Speed ( RPM) 1500Rpm
Fuel Tank Capacity (L) 210
Fuel Consumption rate (g/kW.h) 204
Model Type Open / Silent
Standard Package Plywood case/ Plastic
Noise Level@7m (dBA) 70
Generator set Manufacture Acepow
Oil Consummption (g/kW.h) ≦0.3
Volatage (V) 220/230/240
Silencer Noise Reduction (dBA) 10-20

Engine Technical Data
Engine Model SC4H115D2
Engine Brand Sdec
Number of Cylinders 4
Cylinders Arrangerment Vertical in-line
Bore/Stroke (mm) 105/124
Speed (RPM) 1500
Displacement (L) 4.3
Compression Ratio 17.3:1
Aspiration Turbo
Starting method Electric motor start
Engine Type In-line,4 strokes, water-cooled,4 valves, Turbo charged
Prime power (kw) 78
Standby Power(kw) 86
Prime power (L/h) 20.2
Standby Power (L/h) 22.1
Governing Type Electrical

94KVA 75KW Diesel Backup Generator , Electric Start Diesel Generator
